How are solar modules and solar panels manufactured?

The production of solar cells, solar modules and solar panels are based on the synthesis of silicon.

Silicon is a component of sand or quartz and is therefore one of the most abundant substances on earth. With a degree of purity of well over 90 percent, silicon is considered a particularly pure substance.

There are basically three types of solar modules:

• monocrystalline solar modules,
• polycrystalline solar modules and
• amorphous solar modules.

These are different cell types and their differences can be traced back to the respective production methods.

Monocrystalline Solar Modules

In order to produce monocrystalline solar cells -

1. The silicon oxide, which naturally occurs in the sand, is chemically reduced by the addition of carbon.
2. This process takes place in a so-called arc furnace at a temperature of about 1.410 degrees Celsius.
3. The result of this melt is a thin crystal rod, which is also referred to as a single crystal or monocrystal.
4. The monocrystal is cut into very thin slices: with a thickness of 0.4 micrometers, the square slices are thinner than a human hair.
5. The cut plate is called a "Wafer".
6. After the wafer has been chemically cleaned, the doping takes place: At temperatures of 800 to 1,000 degrees Celsius, silicon atoms are replaced by atoms with a different valence.
7. This increases the conductivity and thus the efficiency of the wafer.

Monocrystals are easily recognisable due to their dark appearance and rounded corners and have a particularly high efficiency due to their purity. Under ideal conditions this can be about 20 percent. Critics criticize the high energy expenditure required by the production of monocrystalline solar cells. Only after several years, such photovoltaic modules have a positive energy balance.

Polycrystalline Solar Modules

Polycrystalline solar cells are an alternative to monocrystals that are associated with a less complex production. In this method -

1. Liquid silicon is poured into prefabricated blocks and then cut into individual wafers.
2. Here, they lose their single crystal structure, which is why they are significantly brighter than monocrystalline.
3. Their efficiency is slightly lower at about 15 percent, but the simplified production process improves the energy balance and costs of manufacture.

Half-Cut Modules

Half cell modules, so-called "Half-Cut" are based on crystalline solar cells, which are:

1. Cut into two identical halves by means of a laser process after cell production.
2. When such half cells are used, 120 instead of the previous standard number of 60 cells are used per module.
3. By halving the cell, possible power losses are reduced and an increase in performance of up to 2.5 percent is achieved.
4. Cell division also increases the total area of the intercellular spaces on the module surface.
5. As a result, the module becomes slightly longer, but the width remains unchanged.

A further advantage of the HC module technology results from the string interconnection, which under certain circumstances and in comparison to standard modules, enables an increased performance with partial shading.

The background is the use of 3 junction boxes which are placed in the middle of the module. This design allows a parallel connection of an upper and a lower string. If, for example, the lower area of the solar module is shaded in the morning hours, this will have less of an effect on the half-cell variant than on full-cell modules. For example, a half-cell module can still provide up to 50% of the total module output with partial shading. In addition, half-cell modules guarantee high reliability.

Amorphous solar modules

Amorphous solar cells are the most favorable variant. For their production -

1. Liquid silicon is evaporated onto a carrier material (e.g. glass).
2. As a result, hardly any material is lost, and production and energy costs are comparatively low.
3. The cells have an efficiency of about seven percent and are often found in pocket calculators and clocks.

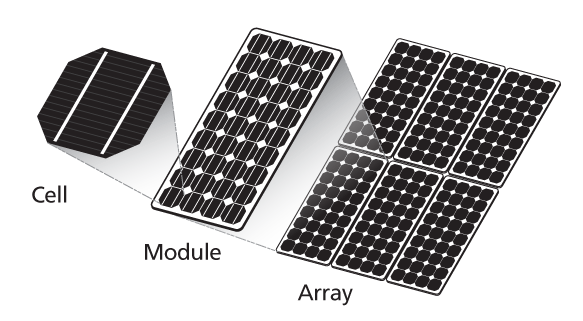

From cell to solar module

For manufacturing a PV module,

1. Up to ten wafers are soldered with a copper ribbon.
2. A so-called "string" is created.
3. In order to achieve high performance, the individual solar cells should have the same properties.
4. After the assembly, the cells receive the protective layer and the characteristic blue antireflection layer.
5. At around 900 degrees Celsius, the cells are provided with contact strips from above and from below. These later ensure that electricity can flow.
6. Once the solar module has been provided with an aluminum frame, a power test is carried out.
7. On the basis of the results, the performance of the solar panel can then be classified before it is sold.

Which solar module is suitable for my roof?

There are several factors to consider when choosing a photovoltaic module or solar panel.

In principle, the roof should be checked before the installation as to whether it is sufficiently load-bearing. A solar module weighs up to 20 kilograms -  monocrystalline and polycrystalline solar modules are generally heavier than amorphous cells.The differing efficiencies of the various modules have already been addressed.

• Monocrystalline solar modules has a high energy generating efficiency and therefore particularly suitable for installations in which a large amount of electricity needs to be generated or for small roof surfaces. This should at best be installed north-facing, in order to ensure ideal exposure to the sun for power generation.
• Polycrystalline solar panels have less risk of a loss of power generation than monocrystalline solar modules. Polycrystalline solar panels function fully in the case of diffused solar radiation.
• In addition, polycrystalline solar panels are more cost-effective and have a high life expectancy of up to 30 years. They are therefore particularly suitable for the long-term production of solar power.
